We supply 99% efficiency filter bags
CFCS are pleased to offer both 93% and 99% efficiency rated filter bags in size 1 & size 2. Find more details about the effectiveness of these filter bags below.
condition & polish your fuel with our...
Our 99.9% & 93% Efficiency Bag Filters
To ensure a competitive price, CFCS only provides box quantities of each product, 25 per box. If you have any additional filtration requirements CFCS would be happy to assist, and if we can not we will gladly help point you in the right direction.
The 93% efficiency bag filters
Neck Material Polypropylene. Max. Operating Temperature 95°C. Max. Operating Pressure Differential 1 bar.

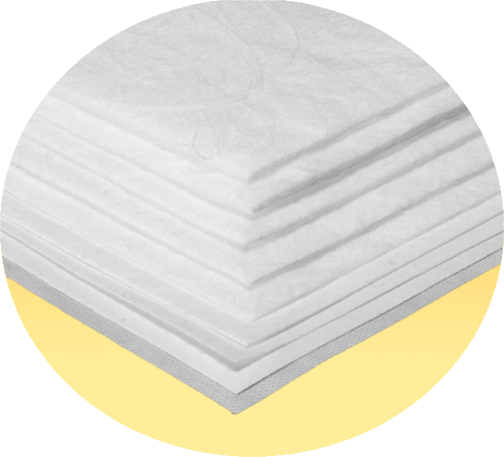

The microfibre media coupled with the flanged neck seal lessens the risk of particle bypass. All layers are sewn together to the neck ring providing a strong, reliable, and effective product capable of finer filtration at high process flow rates.
The 99.9% efficiency bag filters
Neck Material Polypropylene. Max. Operating Temperature 95°C. Recommended Operating Pressure Differential 2.5 bar.
The amazing efficiency of both filter bags can be seen in the data below...
Both bags easily meet and mostly far exceed targets:
4um Target = 18
6um Target = 16
14um Target = 13
| ISO | Start Point | Cartridge Filter 99.9% 26 passes / 26min | Bag Filter 93% 26 passes / 30min | Bag Filter 99% 1 pass / 6m 25s | Bag Filter 99% 18 passes / 1h 56m 5s | Bag Filter 99% 21 passes / 2h 15m |
|---|---|---|---|---|---|---|
| 4um Target | 23 | 13 | 13 | 18 | 13 | 12 |
| 6um Target | 22 | 11 | 10 | 16 | 12 | 11 |
| 14um Target | 19 | 9 | 5 | 13 | 8 | 7 |
| Fuel Quantity | 100 Litres | 160 Litres | 500 Litres | 500 Litres | 500 Litres | |
| Rate | 100 Litres per minute | 100 Litres per minute | 80 Litres per minute | 80 Litres per minute | 80 Litres per minute |
The above data in the table can be seen more clearly in graph form...
